Die Casting Aluminum IP65 Waterproof Outdoor LED Street Light 70 Ra 5 200W/250W/300W/350W
Product Details:
| Place of Origin: | Zhejiang, China |
| Brand Name: | XLD |
| Model Number: | XLD-LED008 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 pieces |
|---|---|
| Price: | $46.00 - $180.00/pieces |
| Packaging Details: | One piece in one carton |
| Delivery Time: | 3-15 days for sample order, 40-60 days for bulkorder |
|
Detail Information |
|||
| Application: | ROAD | Color Temperature(CCT): | 6000K (Daylight Alert) |
|---|---|---|---|
| IP Rating: | IP66, IP66 | Beam Angle(°): | OPTICAL |
| CRI (Ra>): | 70 | Input Voltage(V): | AC 85-265V |
| Lamp Luminous Efficiency(lm/w): | 95 | Warranty(Year): | 5-Year |
| Working Temperature(℃): | -25~50 | Color Rendering Index(Ra): | 70 |
| Power Supply: | AC | Light Source: | LED |
| Support Dimmer: | Yes | Lighting Solutions Service: | Lighting And Circuitry Design |
| Lifespan (hours): | 50000 | Working Time (hours): | 50000 |
| Product Name: | Led Street Lamp | Power: | 100w/150w/200w/250w/300w/350w |
| Lamp Body Material: | Aluminum + Optical Lens | Power Factor: | >0.96 |
| Luminous Efficiency: | ≥95 Lm/w | Working Time: | 50,000h |
| Working Temperature: | -25~50℃ | Working Voltage: | AC 85~305V 50/60Hz |
| Port: | NINGBO | ||
Product Description

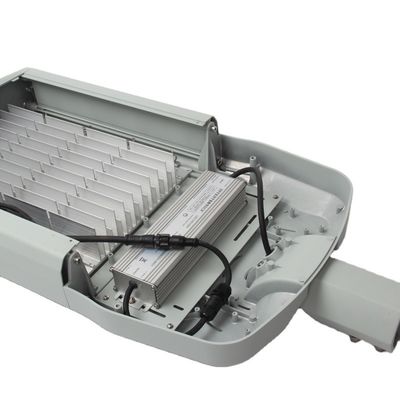

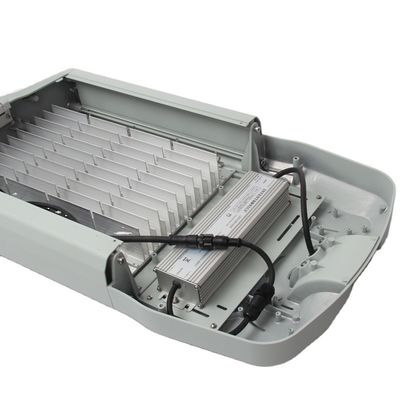

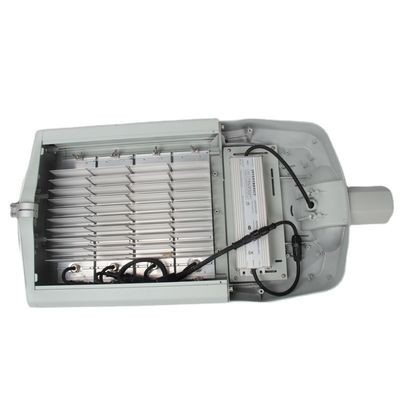

1 Modular design, Optical-driver & Heat-Electricity separate arrangement make on-site individual maintenance feasible.
2 Heatsink of module in high heat conducting extruded aluminum alloy equipped with IP67 cable gland. Optical components and heatsink are connected with high temperature proof sealing gasket, which ensure the module has an IP66 protection level.
3. Designed based on Chimney effect the whole luminaire can simultaneously achieve functions of Air ex-change and preventing entry of bust and sand.
4. Insulation fitter adjustable horizontally and vertically in 20 range multi installation is possible.
5. Free of Halogens, lead, mercury and other hazardous substances fully ROHS compliant.
Roads of ME3 / M4 series lighting requirement
Model | XLD-LED008A | ||||||||||
Power | 100W | 150W | 200W | 250W | 300W | 350W | |||||
LED Light Moudule | XLD-MU-001 | ||||||||||
Working Voltage | AC 85~305 V 50/60Hz | ||||||||||
Luminous Efficiency | ≥95 lm/w | ||||||||||
Working Life | 50,000h | ||||||||||
Power Efficiency | ≥90% | ≥92% | ≥94% | ≥94% | ≥94% | ≥94% | |||||
Power Factor | >0.96 | ||||||||||
IP Rating | Module IP66, Driver IP67 | ||||||||||
Working Temperature | -20~50 ℃ | ||||||||||
A Size | 580mm | 660mm | 740mm | 820mm | 900mm | 980mm | |||||
B Size | 485mm | 565mm | 645mm | 725mm | 805mm | 885mm | |||||
Weight | 6.5kg | 8kg | 9.1kg | 11.2kg | 12.7kg | 13.5kg | |||||
Photometric Date
Founded in 2003, Ningbo Xinglaida Lamps CO., LTD is a professional manufacturer& exporter of street lights, post lights and lighting columns.
From 2013, we commence development of LED lights. Our main products include LED street lights, LED post lights and LED flood lights. Our sophisticated R&D team has been involved in development & fabrication of LED lights since 2005, their expertise ensures the excellent quality of our LED lights. In the mean time, LED lab, LED light workshop is under construction, they are expected to be put into use early 2015.
We have been improving ourselves by being market-oriented and taking sincere service as our tenet. Following the operation guideline of "Surviving on quality and taking up market by brand", XIN GLAIDA applies advanced technologies in LED light production to improve quality so as to meet customers' demands.
We look forward to cooperating with you in the near future.
Q1. Can I have a sample order for LED light module?
A. Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.
Q2. What is the lead time?
A. Samples needs 3~7 days. Mass production time depends on quantity.
Q3.Do you have MOQ for LED light order?
A.Low MOQ. 1pcs sample is available.
Q4. Is it ok to provide our logo on LED product?
A.Yes,OEM&ODM service are both available.
Q5.Do you offer guarantee for the products?
A.Yes, we offer 2-5year warranty to our products.
Q6.What is the payment term and type
A.For payment terms, CIF,FOB, EXW are acceptable, for payment type, TT, L/C, Western Union, other payment is also available on requirements.
