IP65 30w 50w all in one integrated LED street light for outdoor waterproof solution
Product Details:
| Place of Origin: | Zhejiang, China |
| Brand Name: | XLD |
| Model Number: | XLD-LED053/054 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 pieces |
|---|---|
| Price: | $40.00 - $80.00/pieces |
| Packaging Details: | carton |
| Delivery Time: | 3-15 days for sample order, 40-60 days for bulkorder |
| Supply Ability: | 15000 Piece/Pieces per Month |
|
Detail Information |
|||
| Application: | ROAD, Highway | Color Temperature(CCT): | Optional |
|---|---|---|---|
| IP Rating: | IP65, IP 66 | Beam Angle(°): | Optional |
| CRI (Ra>): | 70 | Input Voltage(V): | AC 85-265V |
| Lamp Luminous Efficiency(lm/w): | 130 | Lamp Luminous Flux(lm): | 13000 |
| Warranty(Year): | 5-Year | Working Temperature(℃): | -20~50 ℃ |
| Color Rendering Index(Ra): | 70 | Power Supply: | AC |
| Light Source: | LED | Support Dimmer: | Yes |
| Lighting Solutions Service: | Lighting And Circuitry Design, Project Installation | Lifespan (hours): | 50000 |
| Working Time (hours): | 50000 | Lampshade Material: | Die-casting Aluminum |
| Color: | Optional | Power: | 20w~100w |
| Working Temperature: | -20~50 ℃ | Power Efficacy: | >=90% |
| Power Factor: | >0.95 | Working Life: | 50000 Hours |
| Luminous Efficacy: | >=100lm/w | Port: | Ningbo Or Shanghai, China |
Product Description
competitive price 30 watt multi leds led street light on sale
XLD-LED053/054
Specification
XLD-LED053
| Model | XLD-LED053-XX060 | XLD-LED053-XX80 | XLD-LED053-XX90 | XLD-LED053-XX100 |
| Power | 60W | 80W | 90W | 100W |
| LED Model | CREE XTE/SAMSUNG LH351/ETI NLW3232 | |||
| Working voltage | AC 176~305V 50/60Hz | |||
| Luminous efficacy | >=90lm/w | |||
| Working life | 30,000h | |||
| Power efficacy | >=90% | |||
| Power factor | >0.95 | |||
| IP rating | IP66 | |||
| Working temperature | -20~50℃ | |||
| Product weight | 3.1KG | |||
XLD-LED054
| Model | XLD-LED054-XX020 | XLD-LED054-XX30 | XLD-LED054-XX40 | XLD-LED054-XX50 |
| Power | 20W | 30W | 40W | 50W |
| LED Model | CREE XTE/SAMSUNG LH351/ETI NLW3232 | |||
| Working voltage | AC 176~305V 50/60Hz | |||
| Luminous efficacy | >=90lm/w | |||
| Working life | 30,000h | |||
| Power efficacy | >=90% | |||
| Power factor | >0.95 | |||
| IP rating | IP66 | |||
| Working temperature | -20~50℃ | |||
| Product weight | 2.9KG | |||
Product Features
Hitsink in die casting aluminum featuring hi-conductivity. Optical compartment and electrical compartment share same IP66 protection.
Open heatsink with heat radiation performance.
Secondary optical compartment in Optic-class polycarbonate.
Free of halogen, lead, mercury and other substances, fully ROHS compliant.
Applications
Roads of ME3/ME4 series lighting requirements

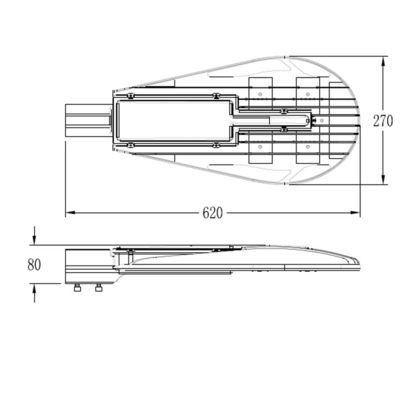

Dimensions(mm)
XLD-LED053
XLD-LED054
Photometric data
competitive price 30 watt multi leds led street light on sale
1.One piece one carton
2.Within 30 days after we receive the deposit
1. Quick reply within 24 hours
2. OEM & ODM services available on requests
3. Ultra long 5-year warranty
Founded in 2003, Ningbo Xinglaida Lamps CO.,LTD. Is a professional manufacturer& exporter of street lights,post lights and lighting columns...view more
competitive price 30 watt multi leds led street light on sale
Q1. Can I have a sample order for LED light module?
A. Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.
Q2. What is the lead time?
A. Samples needs 3~7 days. Mass production time depends on quantity.
Q3.Do you have MOQ for LED light order?
A.Low MOQ. 1pcs sample is available.
Q4. Is it ok to provide our logo on LED product?
A.Yes,OEM&ODM service are both available.
Q5.Do you offer guarantee for the products?
A.Yes, we offer 2-5year warranty to our products.
Q6.What is the payment term and type
A.For payment terms, CIF,FOB, EXW are acceptable, for payment type, TT, L/C, Western Union, other payment is also available on requirements.
