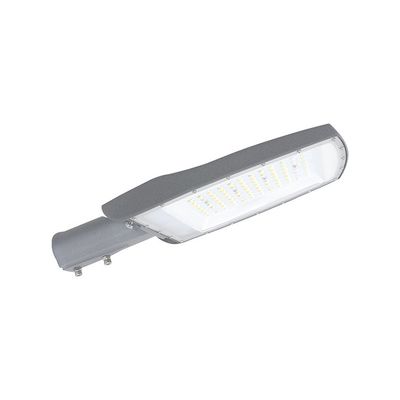

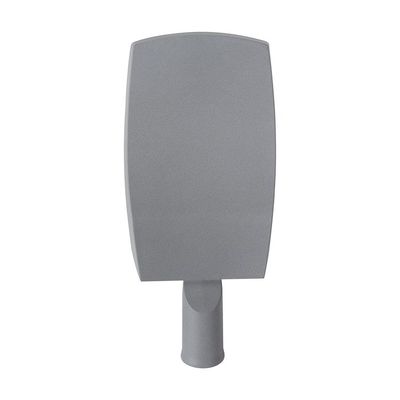

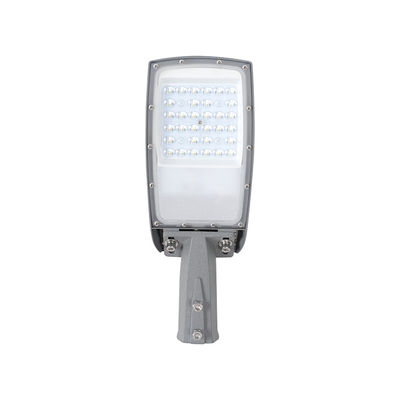

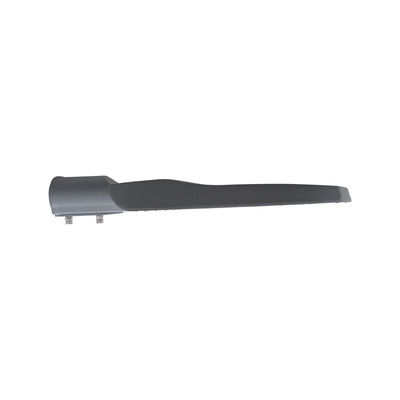

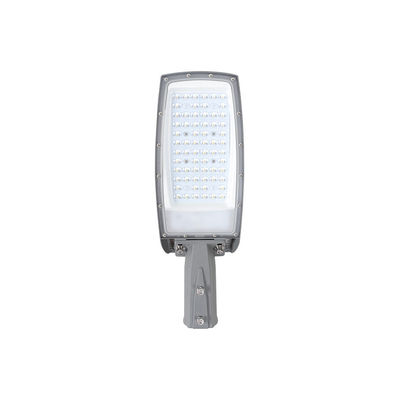

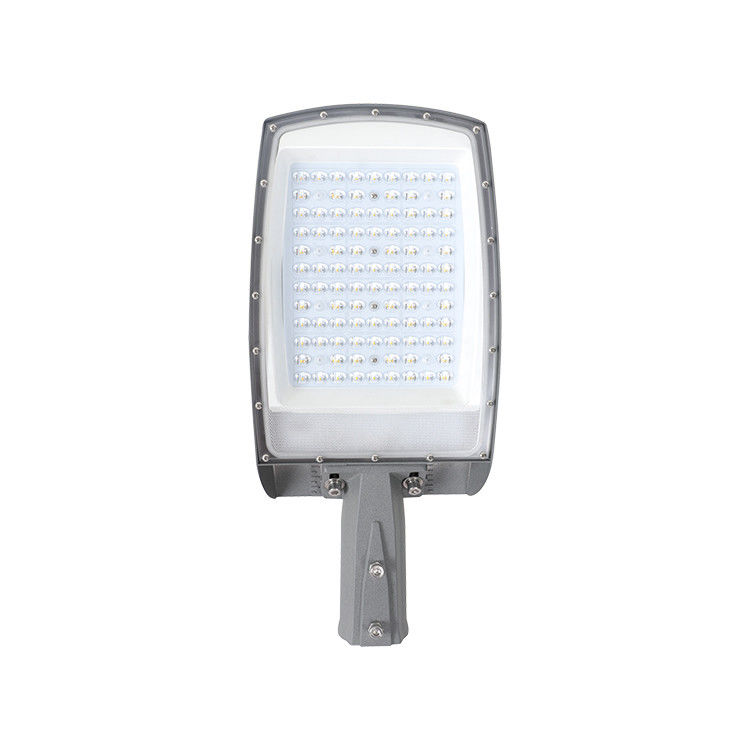

130--160 lm/W Luminous Efficiency All In One Street Lights for 20-55C Temperature
Product Details:
| Place of Origin: | Zhejiang, China |
| Brand Name: | XLD |
| Certification: | EMC, rohs, CQC, ce, FCC, LVD, GS |
| Model Number: | XLD-R10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 pieces |
|---|---|
| Price: | $13.70/pieces 2-99 pieces |
| Packaging Details: | One piece in one carton |
| Delivery Time: | 3-15 days for sample order, 40-60 days for bulkorder |
| Supply Ability: | 15000 Piece/Pieces per Month |
|
Detail Information |
|||
| Application: | ROAD | Color Temperature(CCT): | 4000K |
|---|---|---|---|
| IP Rating: | IP66, IP66 | CRI (Ra>): | 70 |
| Input Voltage(V): | AC100-277V | Lamp Luminous Efficiency(lm/w): | 130/150lm/w |
| Lamp Luminous Flux(lm): | 1500000W | Warranty(Year): | 5-Year |
| Working Temperature(℃): | -20~+55C | Color Rendering Index(Ra): | 70 |
| Power Supply: | AC | Light Source: | LED |
| Support Dimmer: | NO | Lighting Solutions Service: | Lighting And Circuitry Design |
| Lifespan (hours): | 100000 | Working Time (hours): | 100000 |
| Product Weight（kg）: | 2.5 | Product Name: | Led Street Lamp |
| Power: | 100w-300w | Lamp Body Material: | Aluminum + Optical Lens |
| Power Factor: | PF>0.9 | Luminous Efficiency: | 130--160 Lm/W |
| Working Time: | 10000h | Working Temperature: | -20~+55C |
| LED Junction Temperature: | ≤ 90℃ | Working Voltage: | AC100-277V 50/60Hz |
| Port: | NINGBO | ||
Product Description
Model NO. | Power(W) | Light Source | LED QTY (PCS) | Lens(PCS) | CCT(K) | Lumen(lm/W) | CRI |
R10-13-30W | 30 | 3030 | 48 | 4 | 4000k | 130 | ＞70 |
R10-15-50W | 50 | 3030 | 96 | 8 | 4000k | 130 | ＞70 |
R10-110-100W | 100 | 3030 | 144 | 12 | 4000k | 130 | ＞70 |
R10-115-150W | 150 | 3030 | 240 | 20 | 4000k | 130 | ＞70 |
Model NO. | Sningle BOX | Pcs/CTN | N.W/PCS(kg) | G.W/CTN(kg) | Meas(mm) |
R10-13-30W | 1 | 1 | 0.980 | 1.05 | 415*160*80 |
R10-15-50W | 1 | 1 | 1.3 | 1.45 | 485*178*80 |
R10-110-100W | 1 | 1 | 1.85 | 2.05 | 520*247*95 |
R10-115-150W | 1 | 1 | 2.35 | 2.51 | 575*297*95 |
