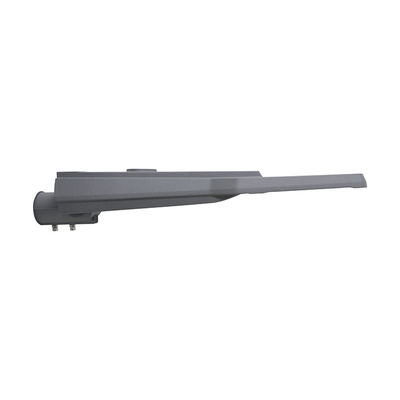

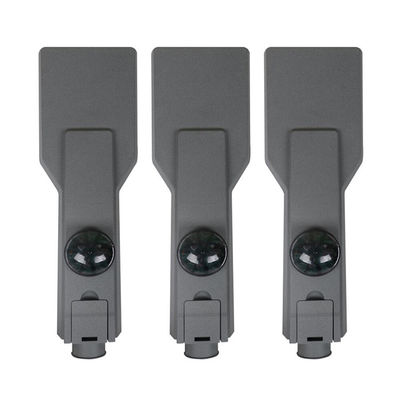

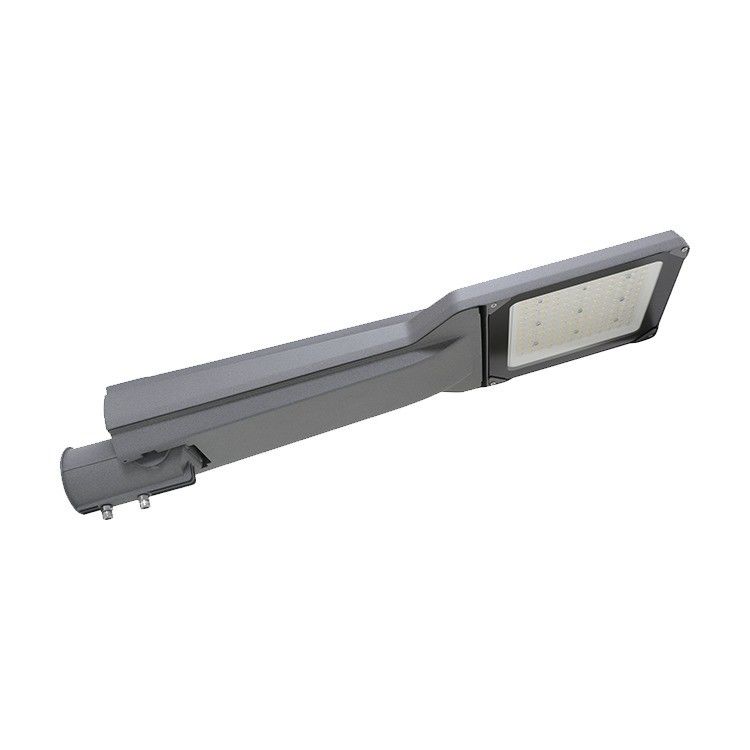

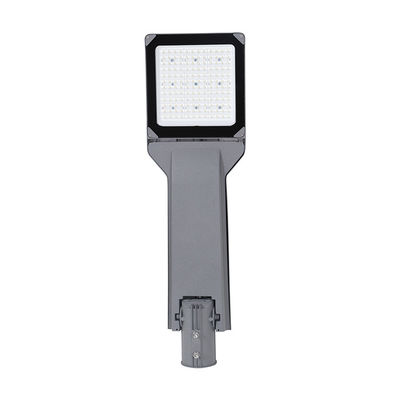

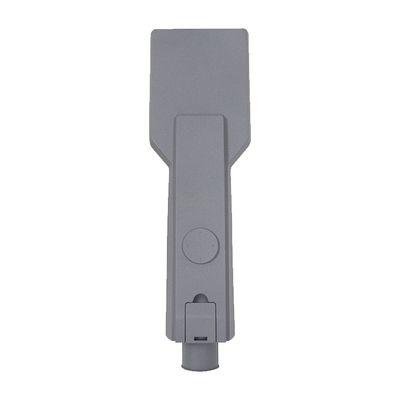

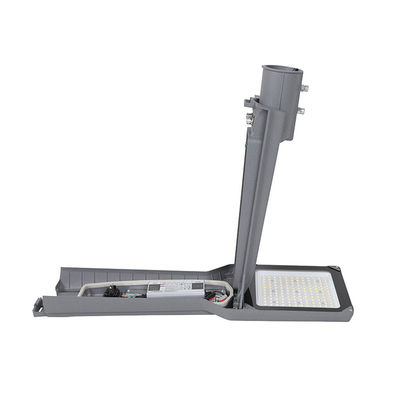

Flood Garden IP66 Waterproof Road Lamp Integrated LED Power LED Street Light Lamp
Product Details:
| Place of Origin: | Zhejiang, China |
| Brand Name: | XLD |
| Certification: | EMC, rohs, CQC, ce, FCC, LVD, GS |
| Model Number: | XLD-R09 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 pieces |
|---|---|
| Price: | $36.00/pieces 2-99 pieces |
| Delivery Time: | 3-15 days for sample order, 40-60 days for bulkorder |
|
Detail Information |
|||
| Application: | ROAD | Color Temperature(CCT): | 4000K |
|---|---|---|---|
| IP Rating: | IP66, IP65 | CRI (Ra>): | 70 |
| Input Voltage(V): | AC100-277V | Lamp Luminous Efficiency(lm/w): | 130/150lm/w |
| Lamp Luminous Flux(lm): | 130--150 Lm/W | Warranty(Year): | 5-Year |
| Working Temperature(℃): | -20~+55C | Color Rendering Index(Ra): | 70 |
| Power Supply: | AC | Light Source: | LED |
| Support Dimmer: | NO | Lighting Solutions Service: | Lighting And Circuitry Design |
| Lifespan (hours): | 100000 | Working Time (hours): | 100000 |
| Product Weight（kg）: | 13.7 | Product Name: | Led Street Lamp |
| Power: | 100w-300w | Lamp Body Material: | Aluminum + Optical Lens |
| Power Factor: | PF>0.9 | Luminous Efficiency: | 130--160 Lm/W |
| Working Time: | 10000h | Working Temperature: | -20~+55C |
| LED Junction Temperature: | ≤ 90℃ | Working Voltage: | AC100-277V 50/60Hz |
Product Description
Model NO. | Power(W) | Light Source | LED QTY (PCS) | Lens(PCS) | CCT(K) | Lumen (lm/W) | CRI |
R09-15-30W | 30 | 3030(5050) | 48/24 | 4 | 4000k | 130/145 | ＞70 |
R09-15-40W | 40 | 3030(5050) | 64/32 | 4 | 4000k | 130/145 | ＞70 |
R09-15-50W | 50 | 3030(5050) | 64/32 | 4 | 4000k | 125/135 | ＞70 |
R09-15-60W | 60 | 3030(5050) | 64/32 | 4 | 4000k | 120/130 | ＞70 |
R09-110-80W | 80 | 3030(5050) | 144/54 | 9 | 4000k | 130/150 | ＞70 |
R09-110-100W | 100 | 3030(5050) | 144/54 | 9 | 4000k | 130/150 | ＞70 |
R09-110-120W | 120 | 3030(5050) | 144/72 | 9 | 4000k | 130/140 | ＞70 |
R09-115-150W | 150 | 3030(5050) | 192/96 | 16 | 4000k | 130/150 | ＞70 |
R09-115-180W | 180 | 3030(5050) | 256/96 | 16 | 4000k | 130/150 | ＞70 |
R09-115-200W | 200 | 3030(5050) | 256/128 | 16 | 4000k | 130/150 | ＞70 |
