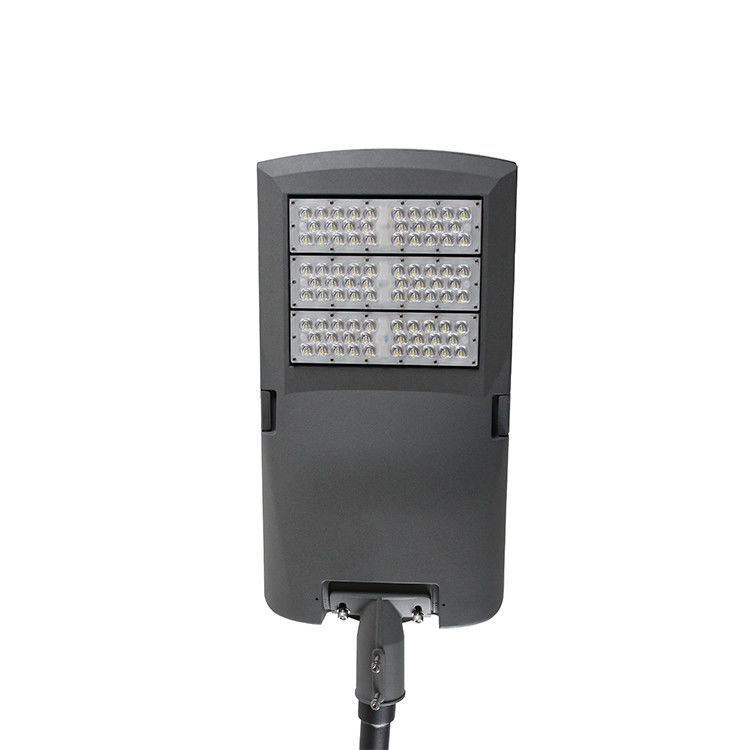

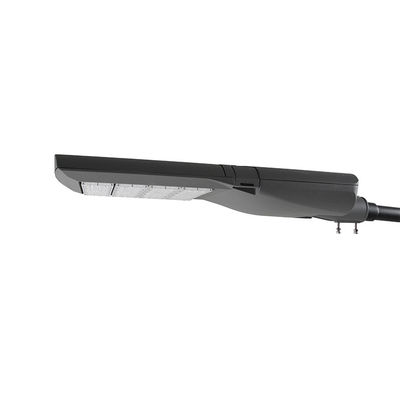

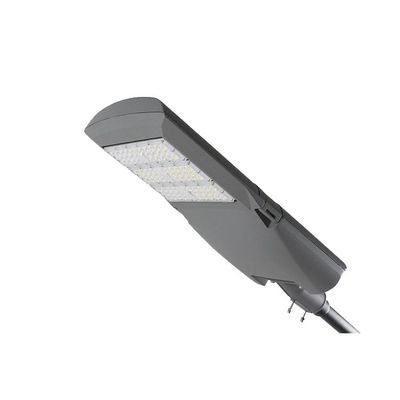

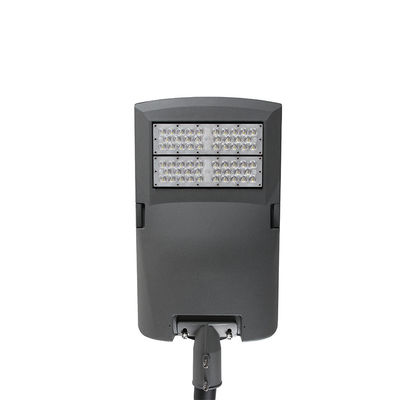

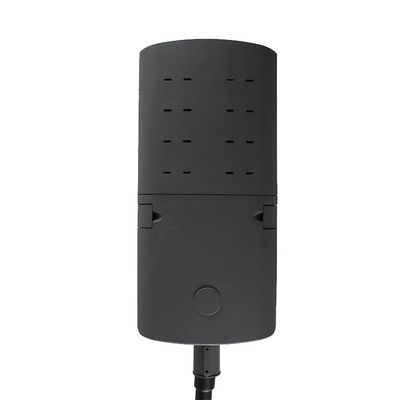

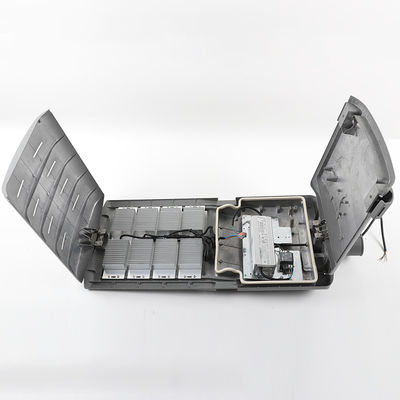

AC100-277V 50/60Hz IP66 Aluminum Shape Garden LED Street Light 100w-300w for Roadways
Product Details:
| Place of Origin: | Zhejiang, China |
| Brand Name: | XLD |
| Certification: | EMC, rohs, CQC, ce, FCC, LVD, GS |
| Model Number: | XLD-R07 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 pieces |
|---|---|
| Price: | $86.00/pieces 2-99 pieces |
| Delivery Time: | 3-15 days for sample order, 40-60 days for bulkorder |
|
Detail Information |
|||
| Application: | ROAD | Color Temperature(CCT): | 4000K |
|---|---|---|---|
| IP Rating: | IP66, IP66 | CRI (Ra>): | 70 |
| Input Voltage(V): | AC100-277V | Lamp Luminous Efficiency(lm/w): | 130/150lm/w |
| Lamp Luminous Flux(lm): | 1500000W | Warranty(Year): | 5-Year |
| Working Temperature(℃): | -20~+55C | Color Rendering Index(Ra): | 70 |
| Power Supply: | AC | Light Source: | LED |
| Support Dimmer: | NO | Lighting Solutions Service: | Lighting And Circuitry Design |
| Lifespan (hours): | 100000 | Working Time (hours): | 100000 |
| Product Weight（kg）: | 13.7 | Product Name: | Led Street Lamp |
| Power: | 100w-300w | Lamp Body Material: | Aluminum + Optical Lens |
| Power Factor: | PF>0.9 | Luminous Efficiency: | 130--160 Lm/W |
| Working Time: | 10000h | Working Temperature: | -20~+55C |
| LED Junction Temperature: | ≤ 90℃ | Working Voltage: | AC100-277V 50/60Hz |
Product Description
Model NO. | Power(W) | Light Source | LED QTY (PCS) | Lens(PCS) | CCT(K) | Lumen(lm/W) | CRI |
R07-110 | 100W | 3030(5050) | 112/56 | 2 | 4000k | 130/150 | ＞70 |
R07-115 | 150W | 3030(5050) | 168/84 | 3 | 4000k | 130/150 | ＞70 |
R07-120 | 200W | 3030(5050) | 224/112 | 4 | 4000k | 130/150 | ＞70 |
R07-125 | 250W | 3030(5050) | 280/140 | 5 | 4000k | 130/150 | ＞70 |
R07-130 | 300W | 3030(5050) | 168/168 | 6 | 4000k | 130/150 | ＞70 |
Model NO. | Size L(mm) | Size W(mm) | Size H(mm) | Support pole diameter |
R07-110 | 718 | 371 | 140 | 60 |
R07-115 | 798 | 371 | 140 | 60 |
R07-120 | 878 | 371 | 140 | 60 |
R07-125 | 958 | 371 | 140 | 60 |
R07-130 | 1038 | 371 | 140 | 60 |
