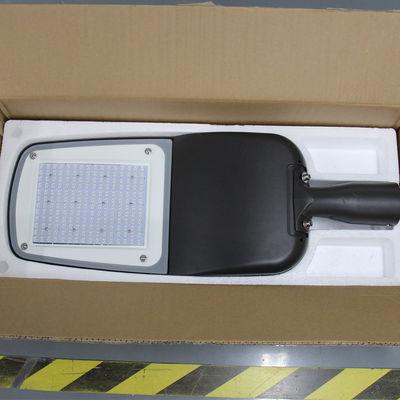

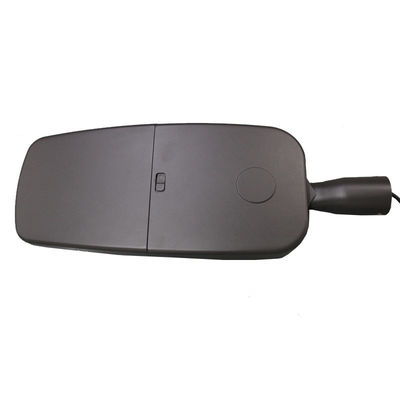

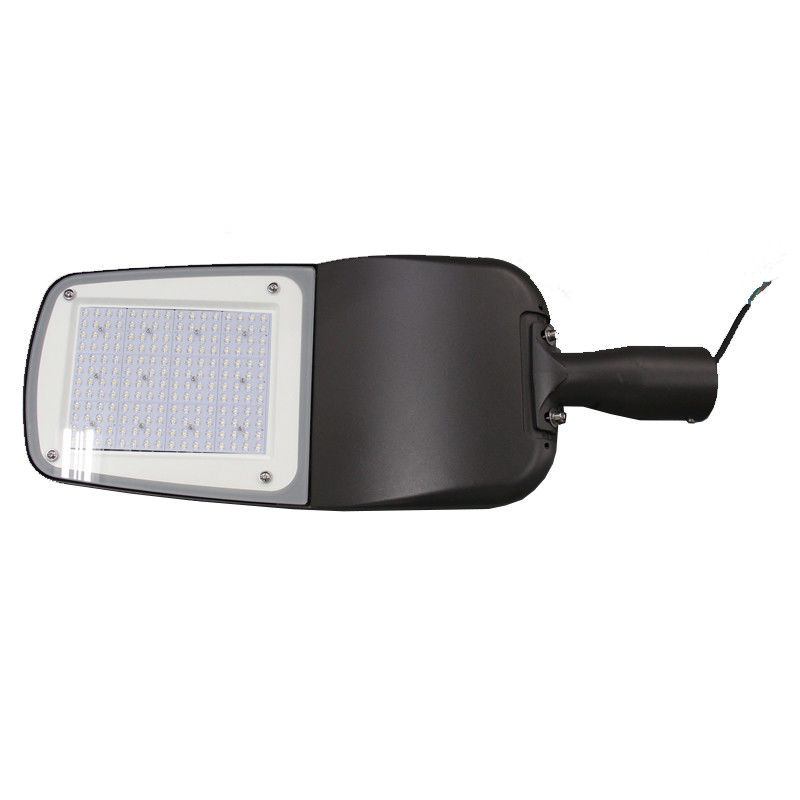

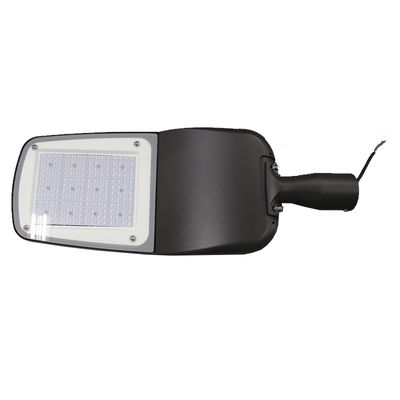

Road Street Lamp LED Public Lighting 30w 50w 100w 150w Lamp Luminous Flux lm Light
Product Details:
| Place of Origin: | Zhejiang, China |
| Brand Name: | XLD |
| Certification: | EMC, rohs, CQC, ce, FCC, LVD, GS |
| Model Number: | XLD-R02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 pieces |
|---|---|
| Price: | $55.00/pieces 2-99 pieces |
| Delivery Time: | 3-15 days for sample order, 40-60 days for bulkorder |
|
Detail Information |
|||
| Application: | ROAD | Color Temperature(CCT): | 2700-6500K |
|---|---|---|---|
| IP Rating: | IP65, IP65 | Beam Angle(°): | 120°, T I, T II-M, TIII-M, TIV-M, TV, T II-BLS |
| CRI (Ra>): | 70 | Input Voltage(V): | AC 100V-240V |
| Lamp Luminous Efficiency(lm/w): | 110-140 Lm/W | Lamp Luminous Flux(lm): | 3000- 20000 Lm |
| Warranty(Year): | 5-Year | Working Temperature(℃): | -30℃ - +50℃ |
| Color Rendering Index(Ra): | 70 | Power Supply: | AC |
| Light Source: | LED | Support Dimmer: | NO |
| Lighting Solutions Service: | Lighting And Circuitry Design | Lifespan (hours): | 50000 |
| Working Time (hours): | 50000 | Product Weight（kg）: | 8 |
| Product Name: | Led Street Lamp | Power: | 30w-400w |
| Lamp Body Material: | Aluminum + Optical Lens | Power Factor: | >0.96 |
| Luminous Efficiency: | ≥90 Lm/w | Working Time: | 50,000h |
| Working Temperature: | -25~50℃ | LED Junction Temperature: | ≤ 90℃ |
| Working Voltage: | AC 85~305V 50/60Hz | ||
Product Description
| Input voltage | AC 100V-240V | ||
| Freqency range | 50HZ-60HZ | ||
| Power factor | >0.95 | ||
| Chip brand | EPISTAR/bridgelux/Philips | ||
| Power brand | Philips/MeanWell/inventronics/SOSEN | ||
| LED quantity(3030) | 30W (R02-15) | 72PCS | 8S9P(6PCS LENS) |
| 40W (R02-15) | 72PCS | 8S9P(6PCS LENS) | |
| 50W (R02-15) | 72PCS | 8S9P(6PCS LENS) | |
| 60W (R02-15) | 96PCS | 8S12P(6PCS LENS) | |
| 80W (R02-15) | 96PCS | 8S12P(6PCS LENS) | |
| 100W (R02-110) | 144PCS | 8S18P(12PCS LENS) | |
| 120W (R02-110) | 144PCS | 8S18P(12PCS LENS) | |
| 150W (R02-110) | 192PCS | 8S24P(12PCS LENS) | |
| 180W (R02-115) | 240PCS | 8S30P(12PCS LENS) | |
| 200W (R02-115) | 240PCS | 8S30P(20PCS LENS) | |
| 240W (R02-115) | 320PCS | 8S40P(20PCS LENS) | |
| System light effect | 110-140 lm/W | ||
| Power efficiency | >90% | ||
| Color temperature | 2700-6500K | ||
| Color rendering index | Ra≥70 | ||
| Light distribution | Symmetry light distribution | ||
| Light design | Lens light distribution | ||
| LED Junction temperature | ≤ 90℃ | ||
| Working temperature | -30℃ — +50℃ | ||
| Storage temperature | -30℃ — +50℃ | ||
| IP Grade | IP65 | ||
| Working life-span | >50,000H | ||
| Power connection line | Brown | L | |
| Blue | N | ||
| Yellow/Green | G | ||
| Color of lamp shell | DOUBLE GRAY /Black / Silver | ||
| Beam angle | TYPE Ⅰ,Ⅱ,Ⅲ,IV,V | ||
| Support tube diameter | (R02-15) | D60 | |
| (R02-110) | D60 | ||
| (R02-115) | D60 | ||
| Lamp weight :N.W./ G.W. | (R02-15) | ||
| (R02-110) | |||
| (R02-115) | |||
| L(MM) | W(MM) | H(MM) | |
| Product size (R02-15) | 249*147*627 | ||
| Product size (R02-110) | 299*152*723 | ||
| Product size (R02-115) | 347*156*785 | ||
| Packing size (R02-15) | 300*170*680 | ||
| Packing size (R02-110) | 330*180*850 | ||
| Packing size (R02-115) | 380*200*867 | ||
Ningbo Xinglaida Lamps Co., Ltd. Was founded in 2003. We are professional manufacturer & exporter of outdoor light. Our main products including street light, garden light, flood light, lighting pole and solar light etc. We exported over 150,000pcs of lights and 5,000 tons of various lighting poles around the world every year. We started to develop led lights and solar lights in 2013, and launched a variety of series of smart lighting poles. Our technical team can complete product development, structural design, and provide a variety of light distribution solutions. Their experience and expertise ensure the superior quality of our products. We can provide OEM,ODM and other customized services. And we will always be committed to providing customers with more quality and competitive lighting products.
Q1 What is your delivery time?
A:Usually we can delivery the goods in 3-15days for sample order, and in 40-60days for bulk order.
Q2 How can we guarantee quality?
A:Size pre-production sample before bulk production;QC stay in factory, in-line and final inspection before shipment.
Q3 Can you make development with our own design style?
A:Yes,we have our owned sample workshop,and we can development for our client every collection within 3-5 days,based on your teck pack or sketches.
Q4 Can you put our own labels/hang tags/wash care on our products?
A:Yes, we can customize your own labels hang tags/wash care and put them on your products.
Q5 What is your MOQ?
A:100-200pcs, depend on the details product request.
Q6 Advantages for our products
A:We have professional technology and R & D team, can make the most suitable light distribution scheme according to different customer needs. And we have been committed to developing and launching more competitive lighting products for each different consumer market.
